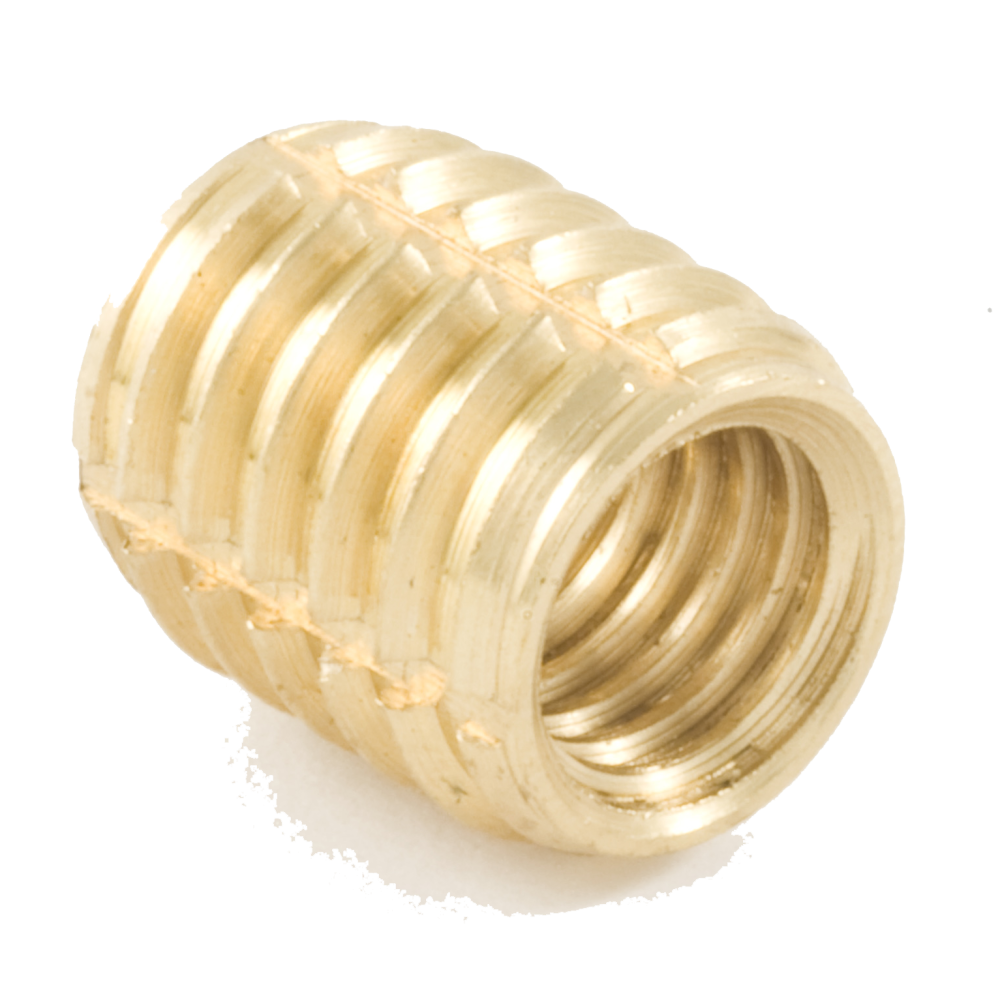

Screwfit - Regular - M5

F5/1-B-M5 Regular

From £11.11 per pack£9.26 ex. VAT

in stock.

Choose Quantity

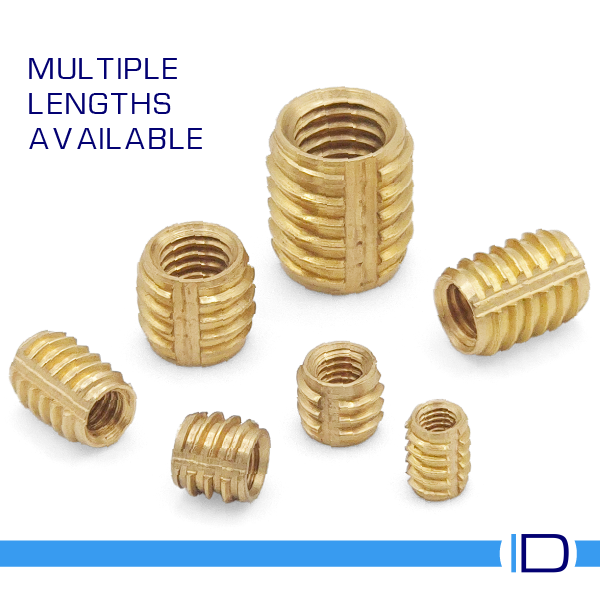

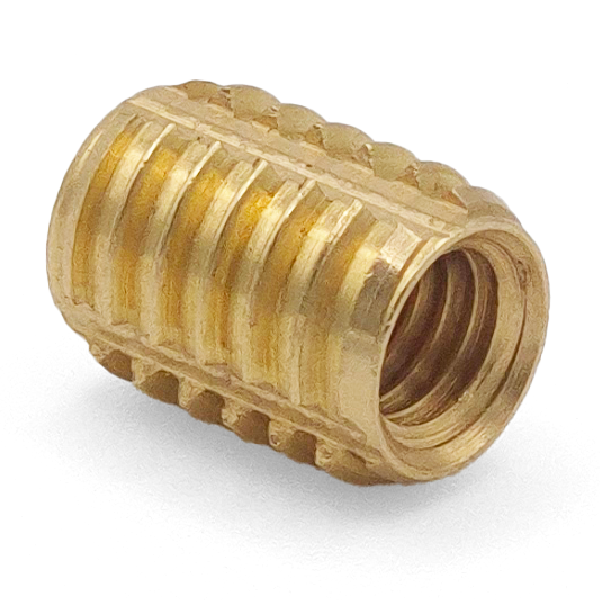

The Screwfit range are self-tapping inserts which are installed post mould in either drilled or moulded holes.

These inserts offer very high torque and pull-out performance.

Part No. 1,000 - 4350708
Part No. 500 - 0951708
Part No. 100 - 0901708

Specification

Material:	Brass
Thread Size:	M5
Recommended Hole Size:	6.90mm
Recommended Sheet Thickness:	2.60mm

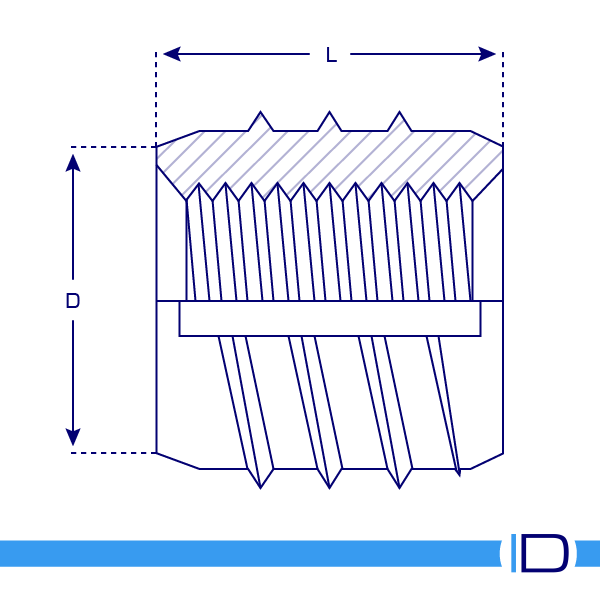

Dimension (A):	8.40mm
Dimension (B):	7.5mm
