Screw Anchor - Short - M4
M4-SH
From £19.78 per pack£16.48 ex. VAT
in stock.
Choose Quantity

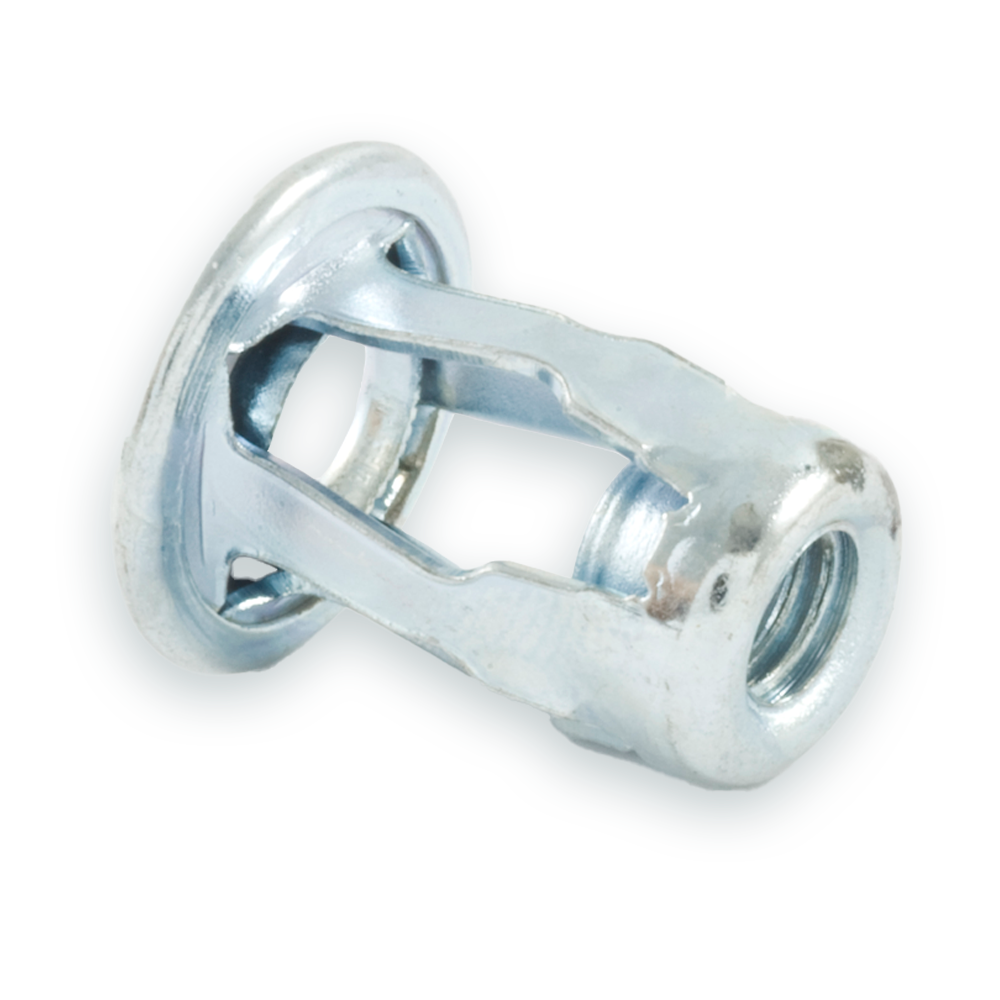

The Screw Anchor/Jack Nut insert is designed to collapse when tightened to form four legs. The legs grip the inside of the surface and leaves a reusable threaded insert.
This insert fasteners into blind hole and is not hole size sensitive.
AKA Jack Nut
Part No. 1,000 - 5510954
Part No. 100 - 0910954
This insert fasteners into blind hole and is not hole size sensitive.
AKA Jack Nut
Part No. 1,000 - 5510954
Part No. 100 - 0910954
Specification
| Material: | Steel |
| Thread Size: | M4 |
| Recommended Hole Size: | 8.00mm |
| Recommended Sheet Thickness: | 0.50mm - 5.00mm |
| Dimension (A): | 15.00mm |
| Dimension (C): | 12.00mm |
| Dimension (D): | 2.00mm |
