Screw Anchor - Long - M6
M6-LN
From £21.11 per pack£17.59 ex. VAT
in stock.
Choose Quantity

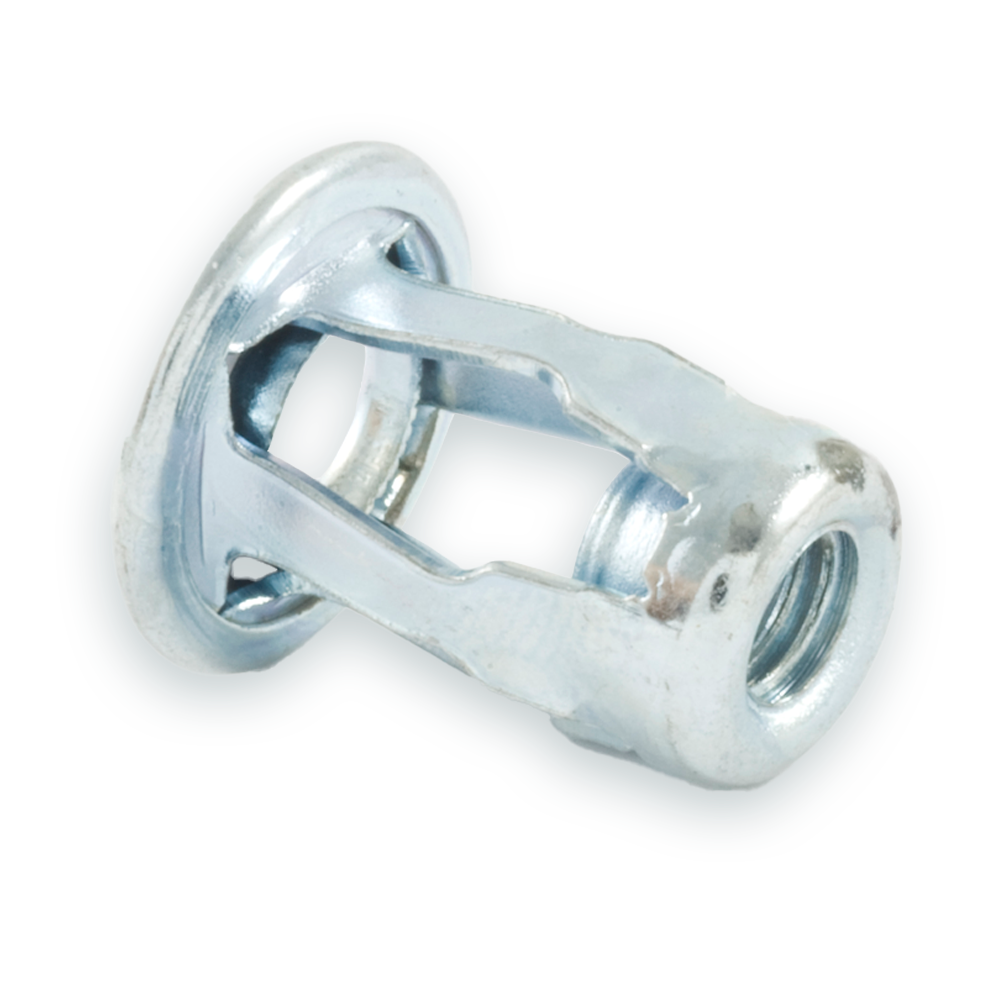

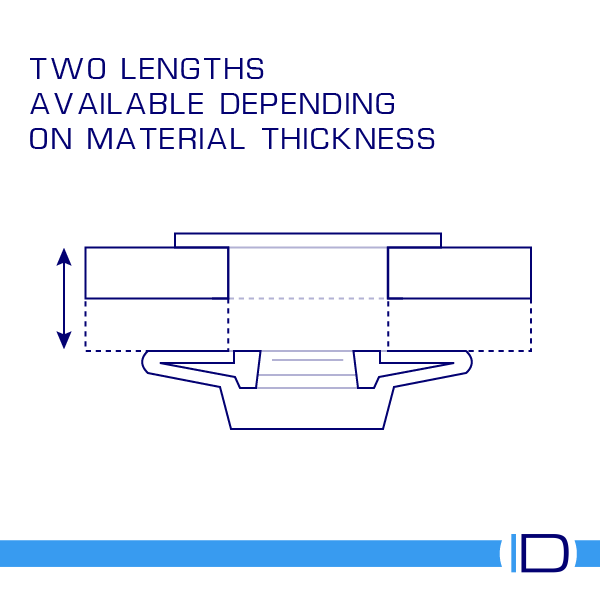

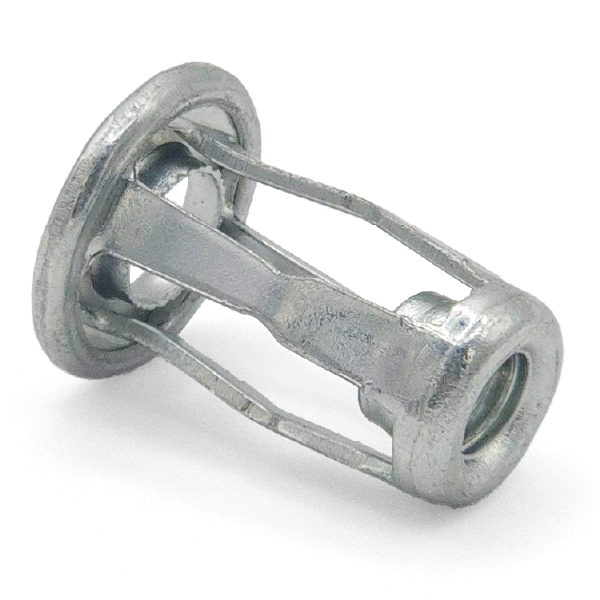

The Screw Anchor/Jack Nut insert is designed to collapse when tightened to form four legs. The legs grip the inside of the surface and leaves a reusable threaded insert.
This insert fasteners into blind hole and is not hole size sensitive.
AKA Jack Nut
Part No. 1,000 - 5560781
Part No. 100 - 0910781
This insert fasteners into blind hole and is not hole size sensitive.
AKA Jack Nut
Part No. 1,000 - 5560781
Part No. 100 - 0910781
Specification
| Material: | Steel |
| Thread Size: | M6 |
| Recommended Hole Size: | 11.00mm |
| Recommended Sheet Thickness: | 5.00mm - 10.00mm |

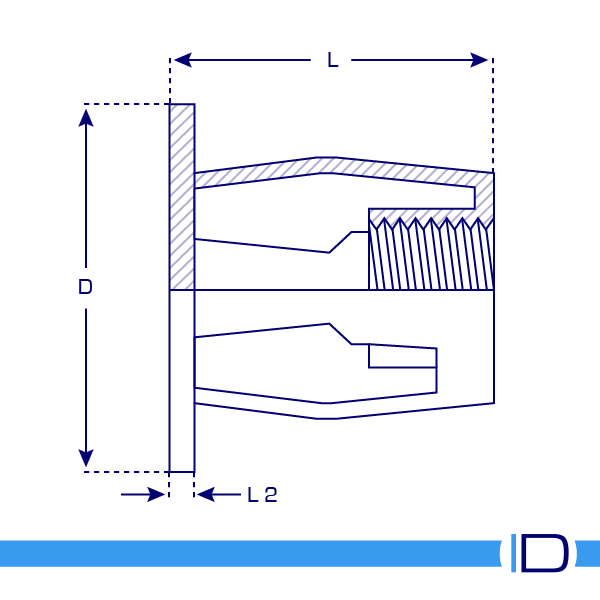

| Dimension (A): | 21.00mm |
| Dimension (C): | 16.00mm |
| Dimension (D): | 2.00mm |
