Screw Anchor - Long - M5
M5-LN
From £20.09 per pack£16.74 ex. VAT
in stock.
Choose Quantity

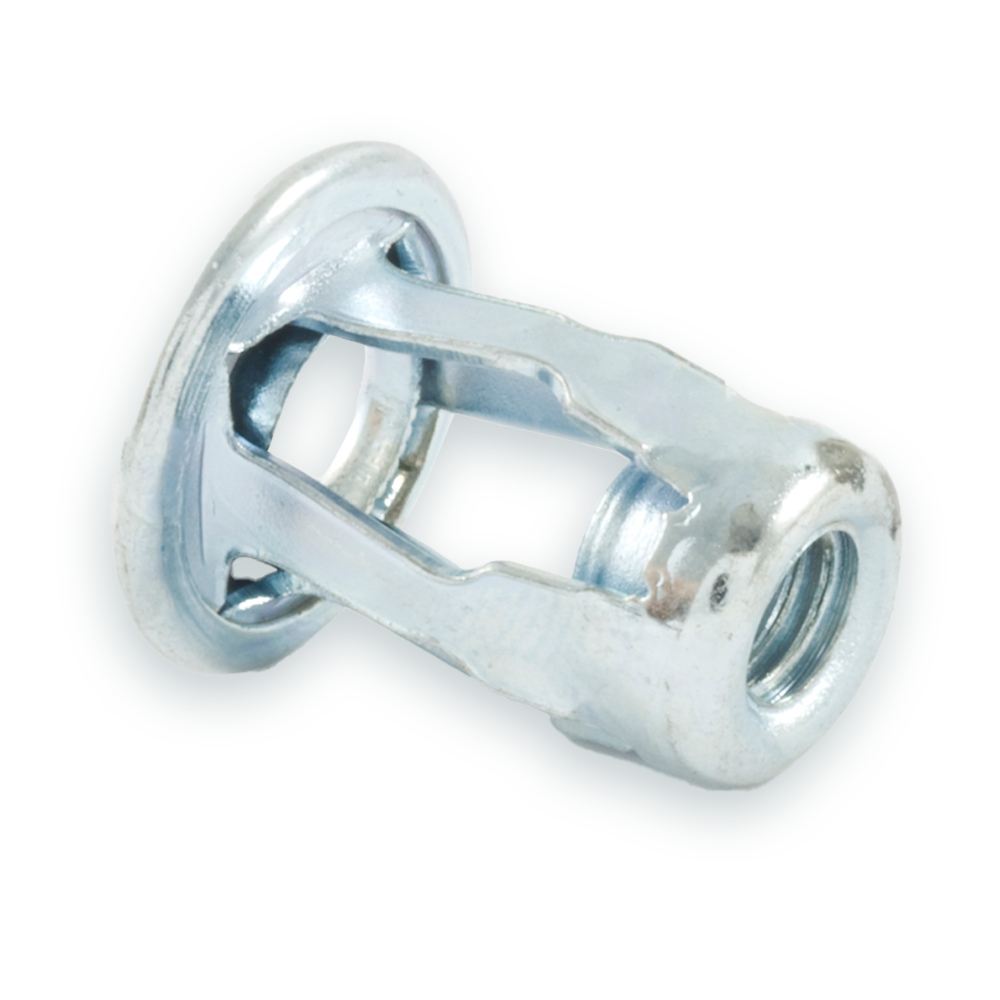

The Screw Anchor/Jack Nut insert is designed to collapse when tightened to form four legs. The legs grip the inside of the surface and leaves a reusable threaded insert.
This insert fasteners into blind hole and is not hole size sensitive.
AKA Jack Nut
Part No. 1,000 - 5541435
Part No. 100 - 0911435
This insert fasteners into blind hole and is not hole size sensitive.
AKA Jack Nut
Part No. 1,000 - 5541435
Part No. 100 - 0911435
Specification
| Material: | Steel |
| Thread Size: | M5 |
| Recommended Hole Size: | 10.00mm |
| Recommended Sheet Thickness: | 5.00mm - 10.00mm |
| Dimension (A): | 21.00mm |
| Dimension (C): | 13.50mm |
| Dimension (D): | 2.00mm |
