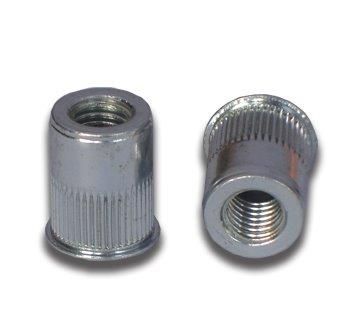

Rivet Nut - Round Thin - Stainless Steel - M10
£39.00 £32.50 ex. VAT
in stock.
Choose Quantity
The round thin rivet nut is suitable for use in materials with reduced thickness where a resistant and reliable thread is needed.
This rivet nut offers fast and high precision assembly and can be used with a wide range of tools.
The low profile head allows a near flush fit and can clamp two or more sheets of material together.
Part No. 100 - 5802185
This rivet nut offers fast and high precision assembly and can be used with a wide range of tools.
The low profile head allows a near flush fit and can clamp two or more sheets of material together.
Part No. 100 - 5802185
Specification
Material: | Stainless Steel |
Thread Size: | M10 |
Recommended Hole Size: | 13.00mm |
Recommended Sheet Thickness: | 1.00mm - 4.00mm |
Dimension (A): | 20.50mm |
Dimension (B): | 12.90mm |
Dimension (C): | 14.00mm |
Dimension (D): | 0.70mm |
