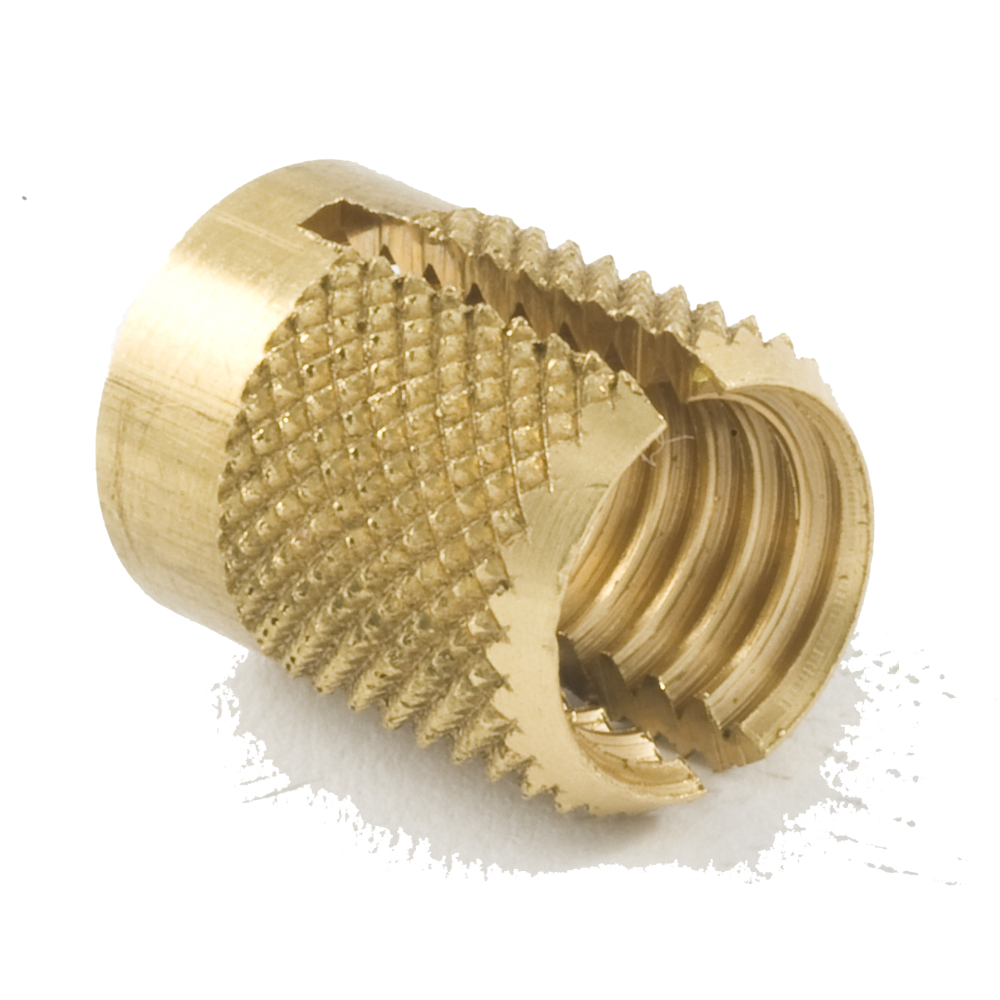

Pressfit - Unheaded - Slotted - M6
F4/1-B-M6
From £31.06 per pack£25.88 ex. VAT
in stock.
Choose Quantity
The Pressfit expandable inserts are easy to install and do not require expensive equipment.
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 0000296
Part No. 500 - 0955296
Part No. 100 - 0911296
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 0000296
Part No. 500 - 0955296
Part No. 100 - 0911296
Specification
| Material: | Brass |
| Thread Size: | M6 |
| Recommended Hole Size: | 8.00mm |
| Recommended Sheet Thickness: | 6.00mm |
| Dimension (A): | 12.70mm |
| Dimension (B): | 8.30mm |
