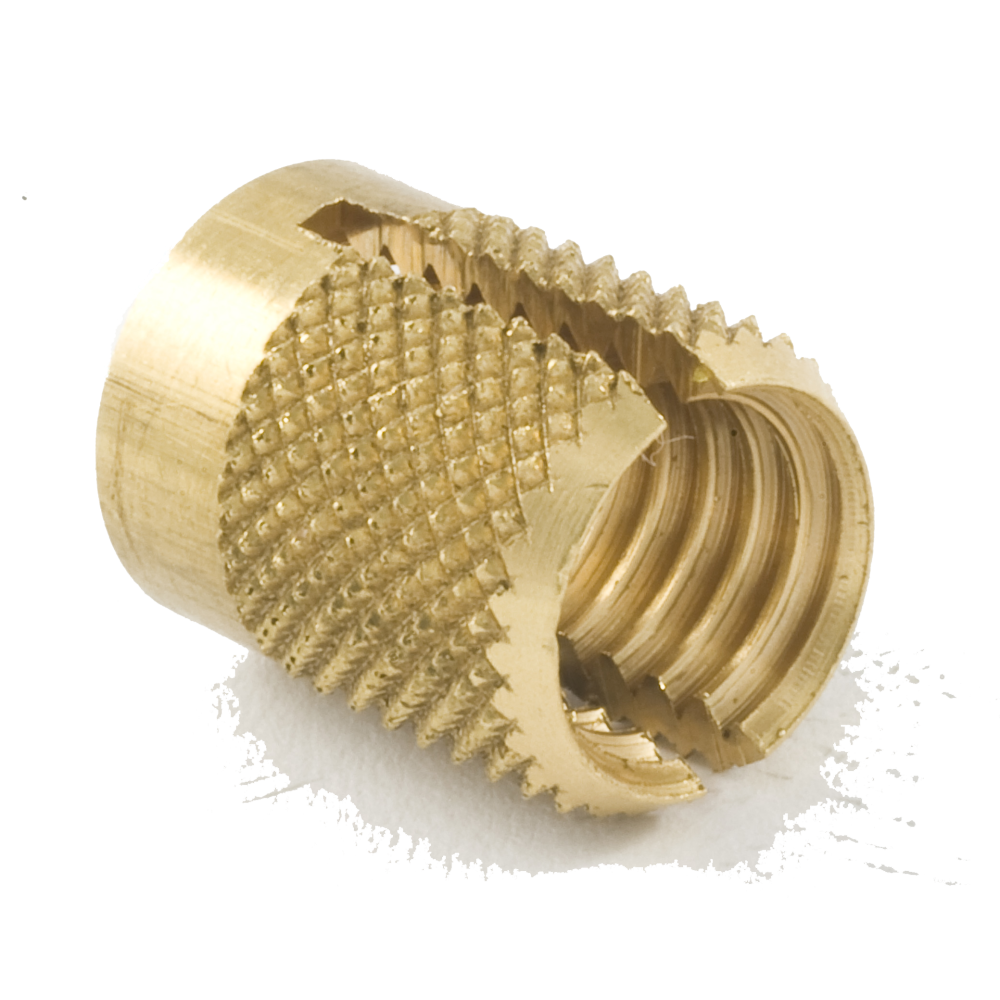

Pressfit - Unheaded - Slotted - M4
F4/1-B-M4
From £20.86 per pack£17.38 ex. VAT
in stock.
Choose Quantity
The Pressfit expandable inserts are easy to install and do not require expensive equipment.
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 0000045
Part No. 500 - 0951045
Part No. 100 - 0900045
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 0000045
Part No. 500 - 0951045
Part No. 100 - 0900045
Specification
| Material: | Brass |
| Thread Size: | M4 |
| Recommended Hole Size: | 5.60mm |
| Recommended Sheet Thickness: | 4.90mm |
| Dimension (A): | 8.00mm |
| Dimension (B): | 5.90mm |
