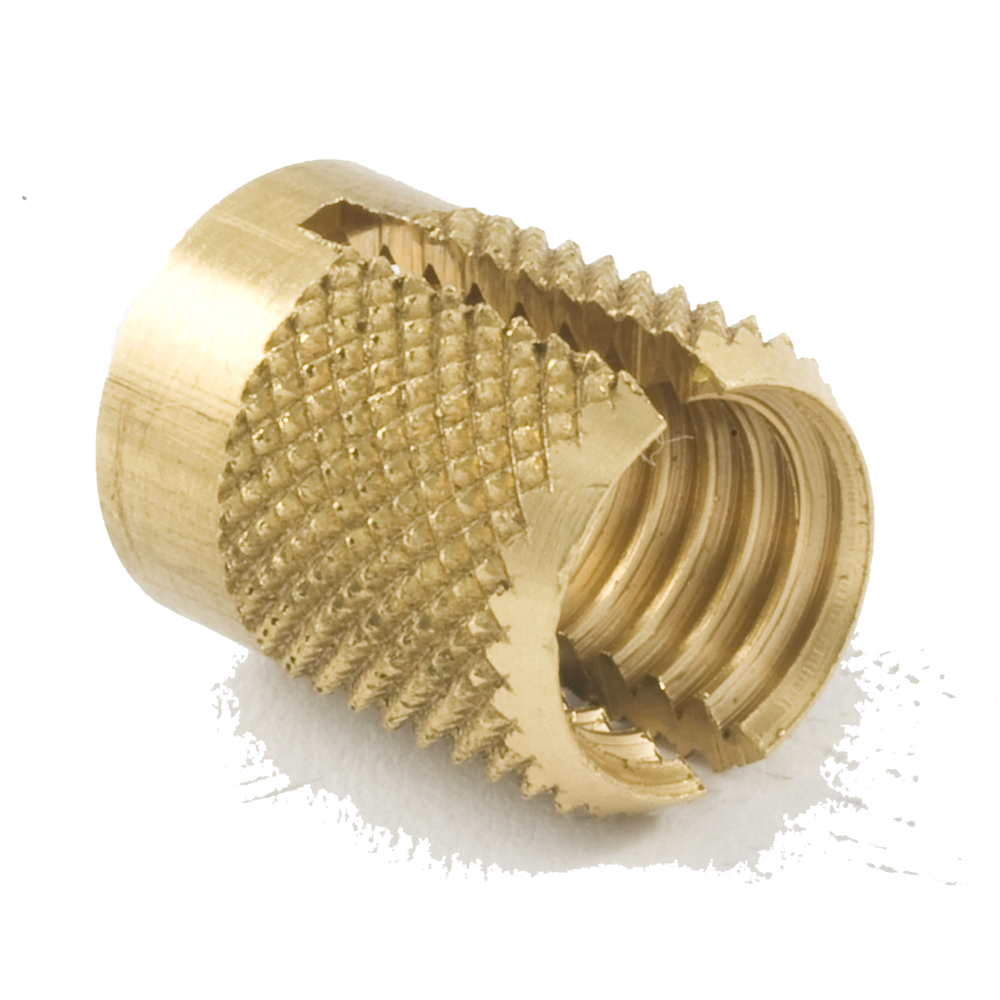

Pressfit - Unheaded - Slotted - M3
F4/1-B-M3
From £17.69 per pack£14.74 ex. VAT
in stock.
Choose Quantity
The Pressfit expandable inserts are easy to install and do not require expensive equipment.
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 0000016
Part No. 500 - 0951116
Part No. 100 - 0900116
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 0000016
Part No. 500 - 0951116
Part No. 100 - 0900116
Specification
| Material: | Brass |
| Thread Size: | M3 |
| Recommended Hole Size: | 4.00mm |
| Recommended Sheet Thickness: | 3.20mm |
| Dimension (A): | 4.80mm |
| Dimension (B): | 4.20mm |
