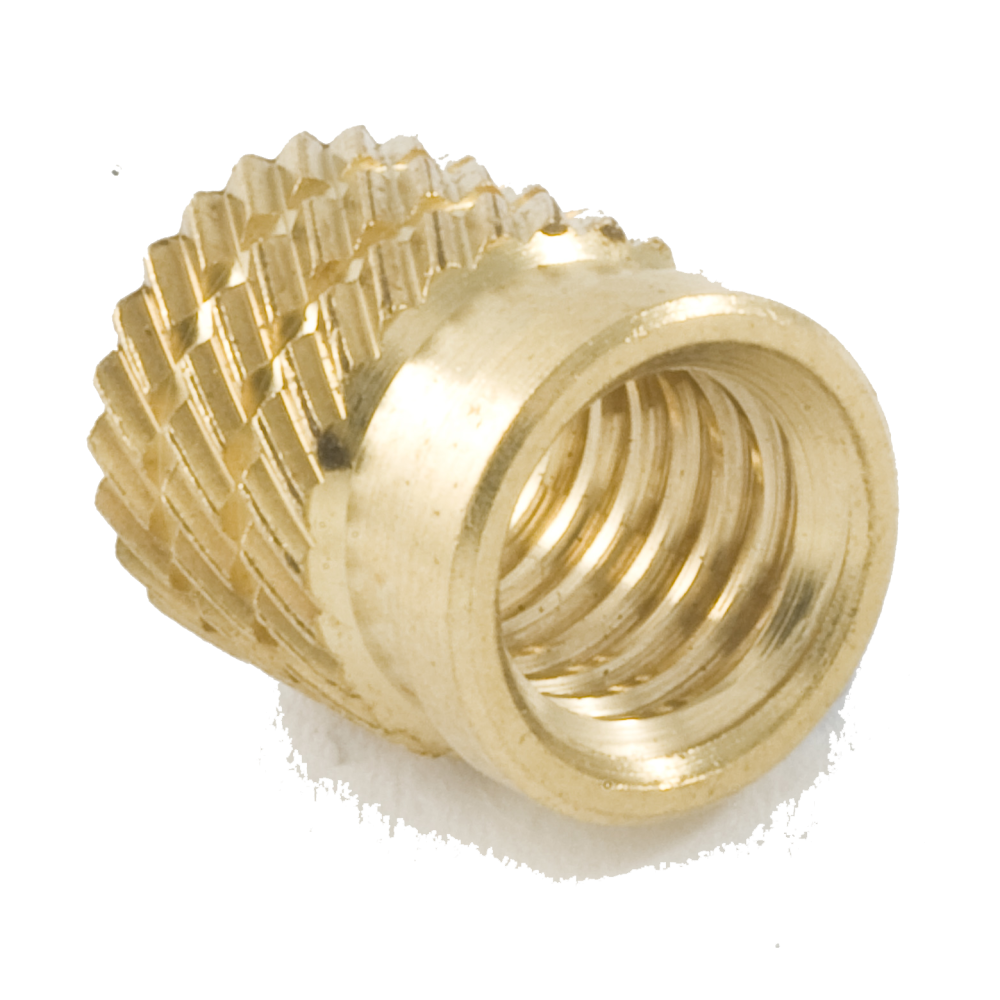

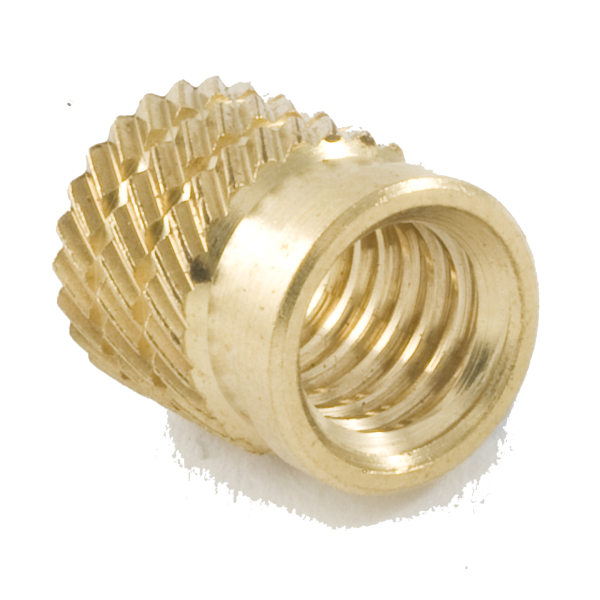

Pressfit - Unheaded - M4

F2/B-M4

From £14.54 per pack£12.12 ex. VAT

in stock.

Choose Quantity

The Pressfit inserts are easy to install and do not require expensive equipment. This insert must be installed using a slow squeezing action and must be allowed to rotate during the installation.

Part No. 1,000 - 2100777
Part No. 500 - 0951777
Part No. 100 - 0900777

Specification

Material:	Brass
Thread Size:	M4
Recommended Hole Size:	5.40mm
Recommended Sheet Thickness:	2.50mm
Dimension (A):	7.47mm
Dimension (B):	5.80mm
