Pressfit - Reverse Headed - Slotted - M5
F4/2R-B-M5
From £21.67 per pack£18.06 ex. VAT
in stock.
Choose Quantity
The reverse headed Pressfit expandable inserts are easy to install and do not require expensive equipment.

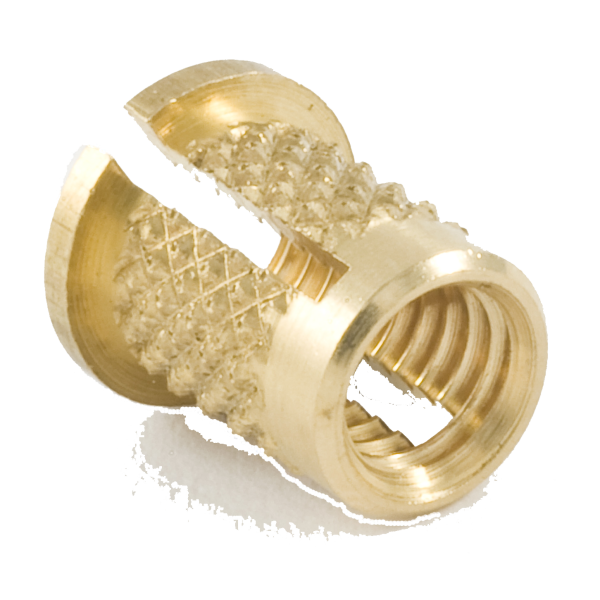

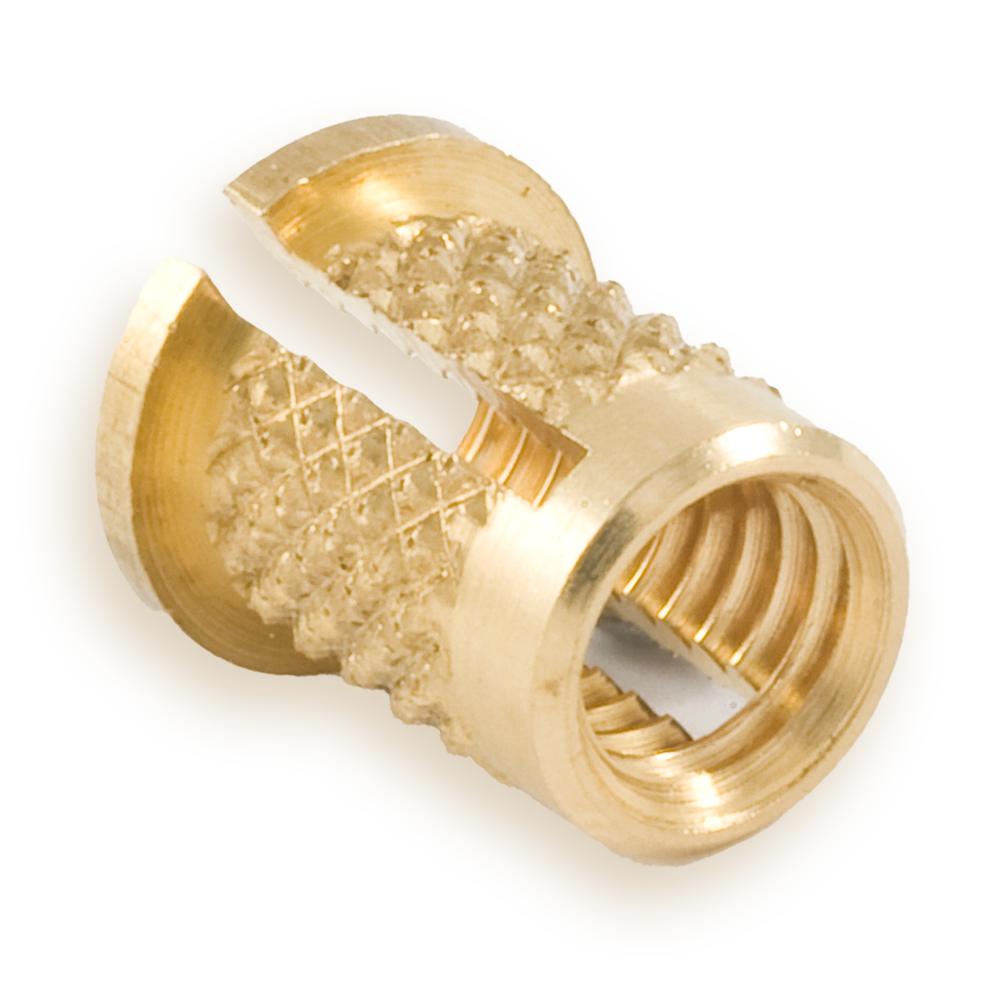

This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 4100137
Part No. 100 - 0901137
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 4100137
Part No. 100 - 0901137
| Material: | Brass |
| Thread Size: | M5 |
| Recommended Hole Size: | 6.40mm |
| Dimension (A): | 9.40mm |
| Dimension (B): | 0.99mm |
| Dimension (C): | 7.90mm |
| Dimension (D): | 6.30mm |
