Pressfit - Reverse Headed - Slotted - M4
F4/2R-B-M4
From £16.52 per pack£19.82 inc. VAT
Choose Quantity

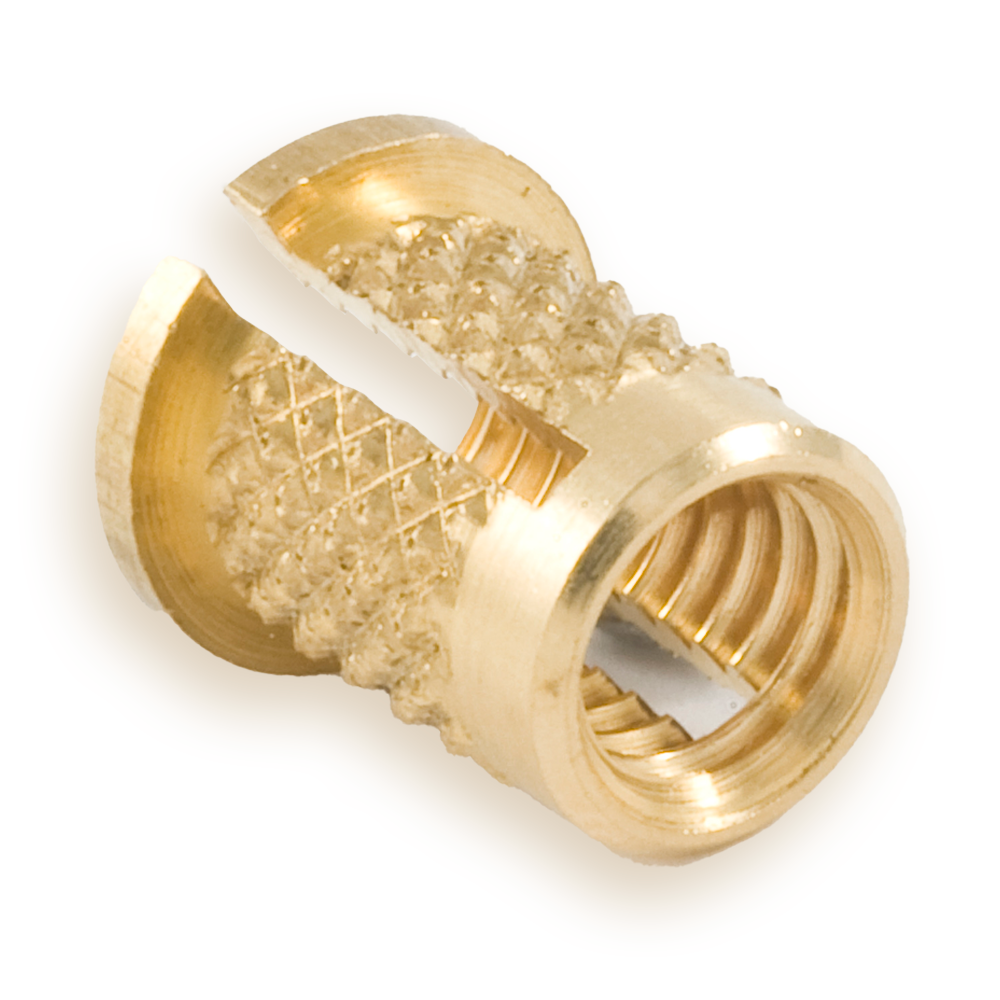

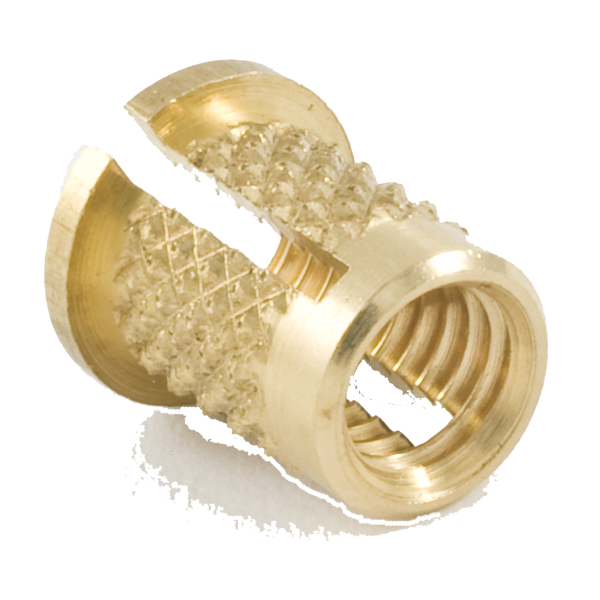

The reverse headed Pressfit expandable inserts are easy to install and do not require expensive equipment.
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 4100056
Part No. 100 - 0900056
Note: Equivalent to PSM Fasteners N42R-B-M4 Banc-Lok insert
This insert has been designed with a diamond knurl and a slot which allows the insert to expand during screw insertion.
Part No. 1,000 - 4100056
Part No. 100 - 0900056
Note: Equivalent to PSM Fasteners N42R-B-M4 Banc-Lok insert
| Material: | Brass |
| Thread Size: | M4 |
| Recommended Hole Size: | 5.60mm |
| Dimension (A): | 7.90mm |
| Dimension (B): | 0.82mm |
| Dimension (C): | 7.10mm |
| Dimension (D): | 5.50mm |
