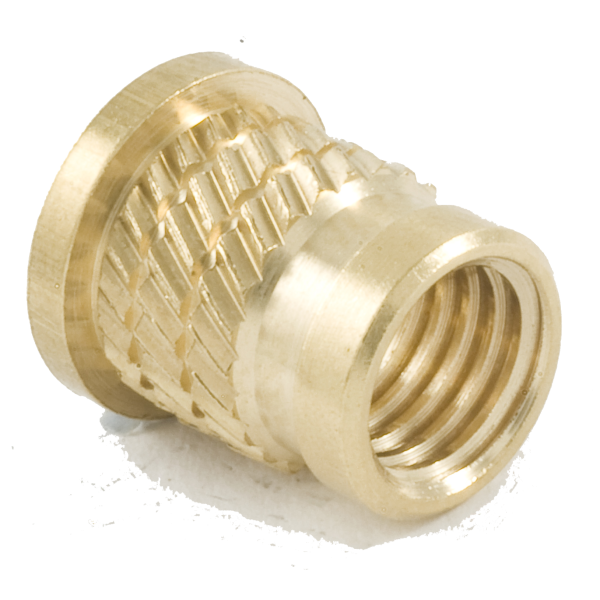

Pressfit - Headed - M3
F2/H-B-M3
£53.95 £44.96 ex. VAT
in stock.
Choose Quantity
The Pressfit inserts are easy to install and do not require expensive equipment. This insert must be installed using a slow squeezing action and must be allowed to rotate during the installation.
Part No. 1,000 - 2130626
Part No. 1,000 - 2130626
Specification
| Material: | Brass |
| Thread Size: | M3 |
| Recommended Hole Size: | 3.80mm |
| Recommended Sheet Thickness: | 2.00mm |
| Dimension (A): | 5.30mm |
| Dimension (B): | 0.55mm |
| Dimension (C): | 5.60mm |
