Multifit - Unheaded - Regular - M6
F3/B-M6 Regular
From £15.10 per pack£12.58 ex. VAT
in stock.
Choose Quantity

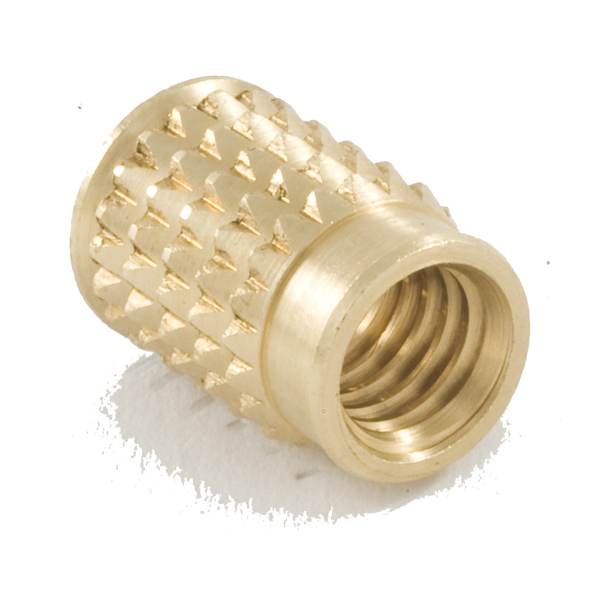

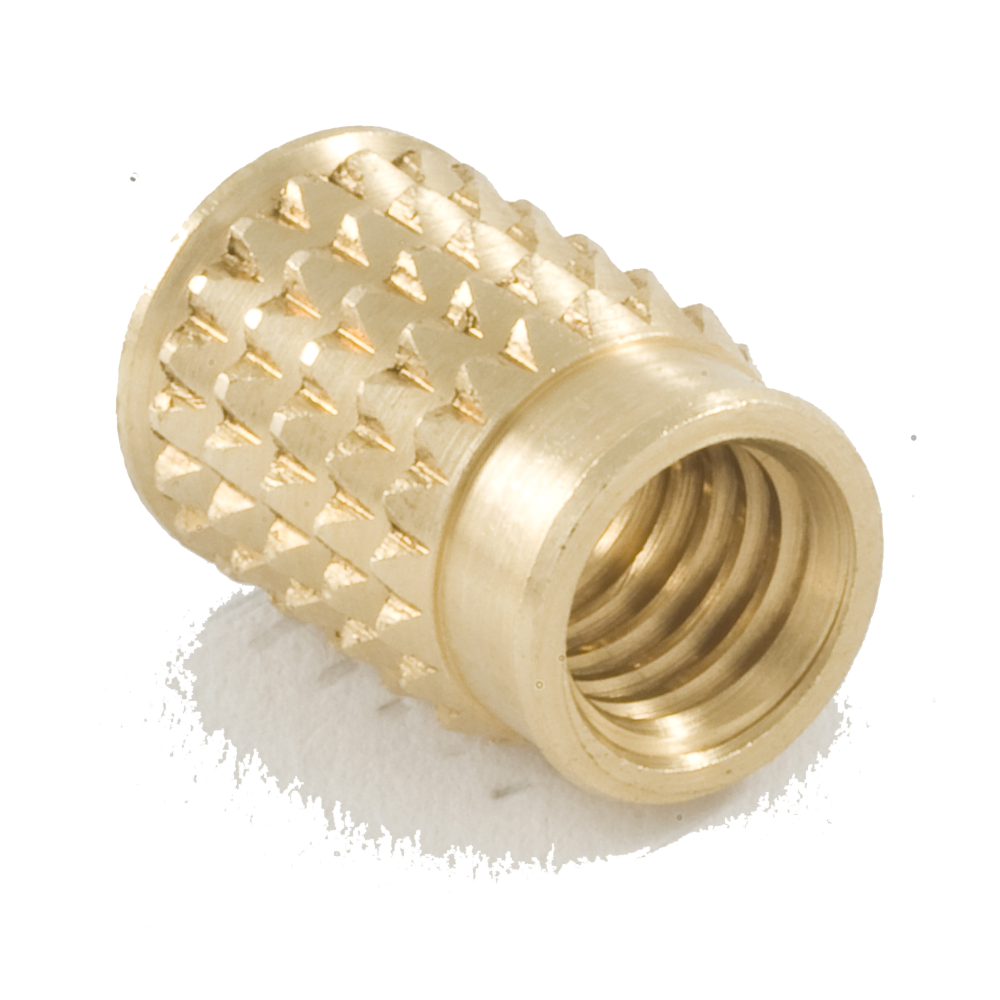

The brass Multifit range of threaded inserts for plastic injection mouldings can be installed either hot or cold.
The knurled barb means that this threaded insert can be used in a wide range of thermoplastic materials. The location spigot and knurl allow the insert to locate squarely in drilled or moulded-in holes.
Part No. 1,000 - 3231731
Part No. 500 - 0951731
Part No. 100 - 0911731
The knurled barb means that this threaded insert can be used in a wide range of thermoplastic materials. The location spigot and knurl allow the insert to locate squarely in drilled or moulded-in holes.
Part No. 1,000 - 3231731
Part No. 500 - 0951731
Part No. 100 - 0911731
Specification
| Material: | Brass |
| Thread Size: | M6 |
| Recommended Hole Size: | 8.20mm |
| Dimension (A): | 12.30mm |
| Dimension (B): | 8.65mm |
