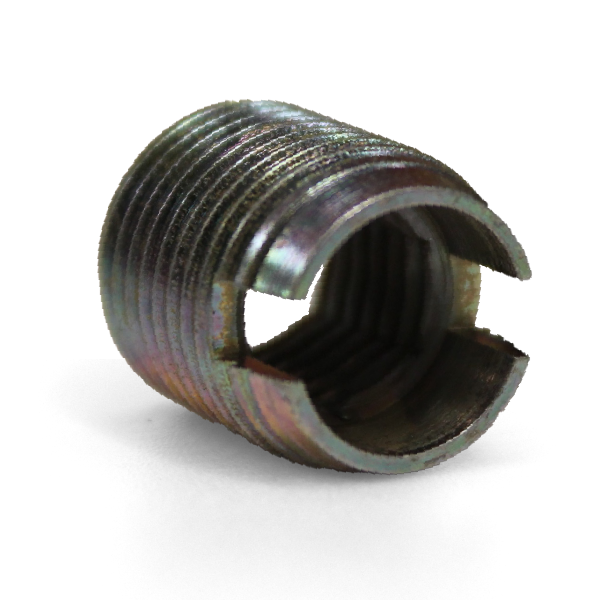

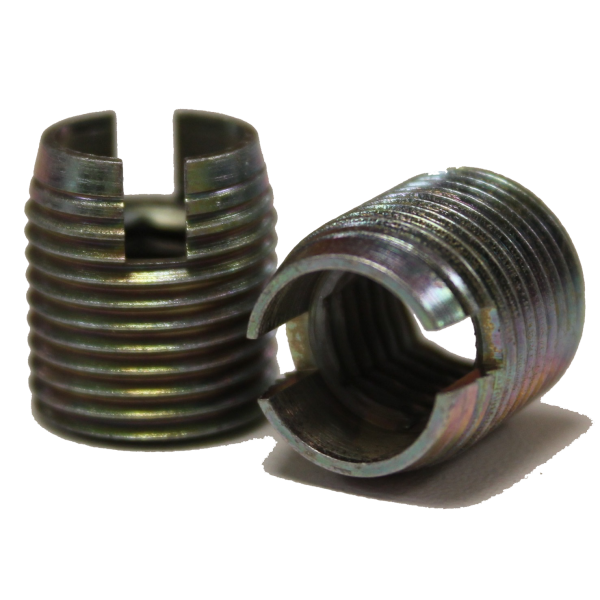

Kwik-Sert® - Steel - M6
Self-tapping threaded insert with hexagonal drive
From £13.69 per pack£16.43 inc. VAT
Choose Quantity

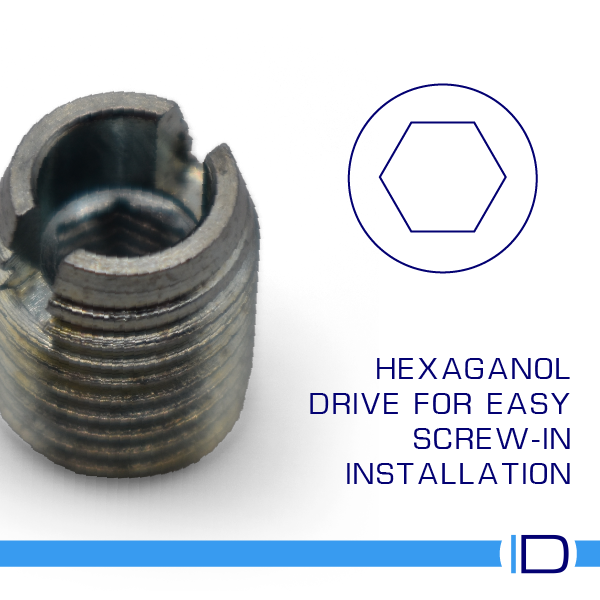

Kwik-Sert®, which is only available to purchase through InsertsDirect, is a versatile metal threaded insert. These self-tapping, screw-in inserts can be installed quickly and efficiently, due to its unique hexagon drive. There's no need for specialist tooling, a simple Allen key or hex key can be used to install it.
Available in hardened steel-plating, they are designed for use in multiple applications including light metal alloys, such as aluminium, castings, extrusions and fabrications.
The quality, self-cutting thread design requires less driving torque without the need for specialist equipment and results in a load bearing thread with a very high pull-out and torque performance.

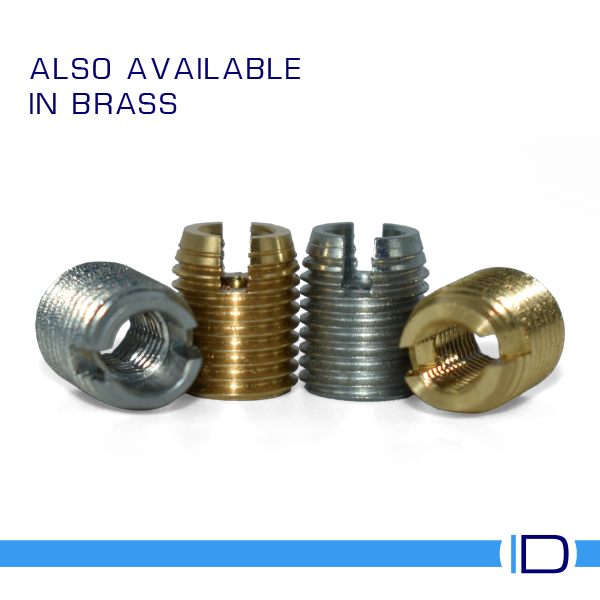

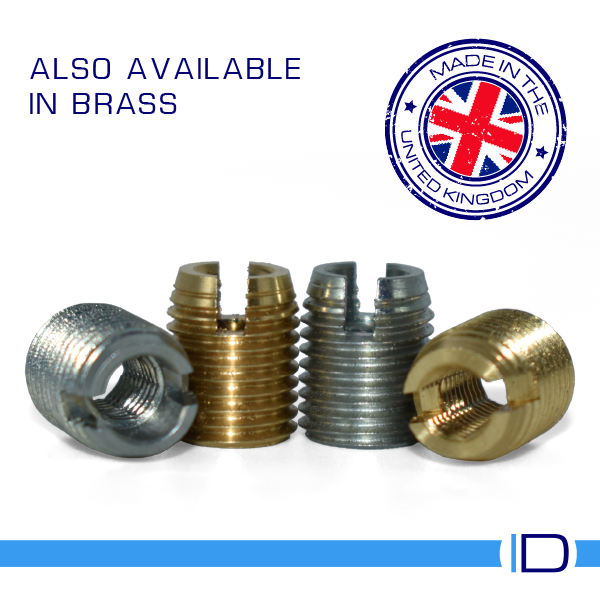

Our Kwik-Sert® products are available in pack sizes of 10, 100 and 1,000 with a brass option, suitable for plastic applications – Kwik-Sert® Brass.
*Not included in our volume discount
Available in hardened steel-plating, they are designed for use in multiple applications including light metal alloys, such as aluminium, castings, extrusions and fabrications.
The quality, self-cutting thread design requires less driving torque without the need for specialist equipment and results in a load bearing thread with a very high pull-out and torque performance.
Our Kwik-Sert® products are available in pack sizes of 10, 100 and 1,000 with a brass option, suitable for plastic applications – Kwik-Sert® Brass.
*Not included in our volume discount
Material: | Steel |
Thread Size: | M6 |
Recommended Hole Size: | 9.50mm |

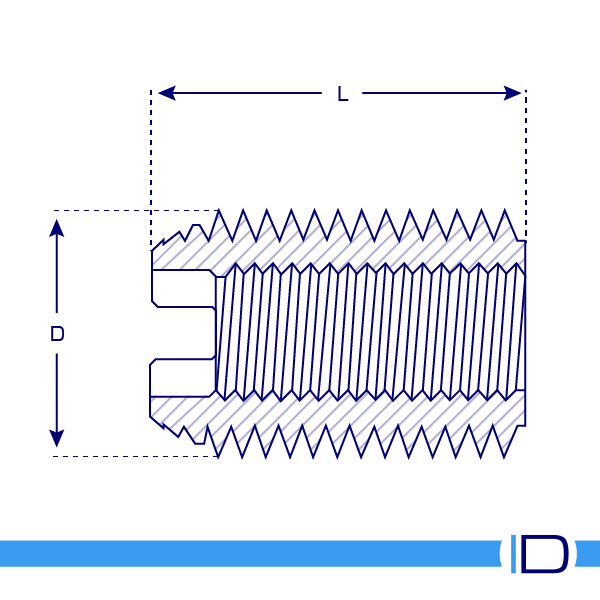

Dimension (D): | 10.00mm |
Dimension (L): | 12.70mm |

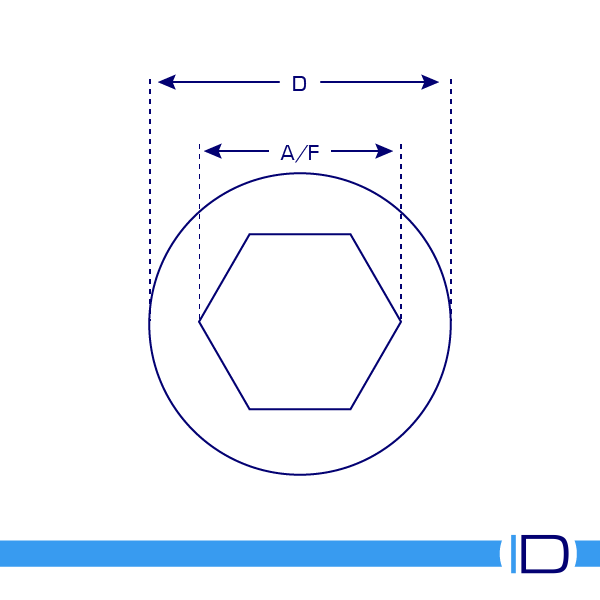

Dimension (A/F): | 5.00mm |
Also known by Part Number KS0610S
