Self-tapping metal threaded insert

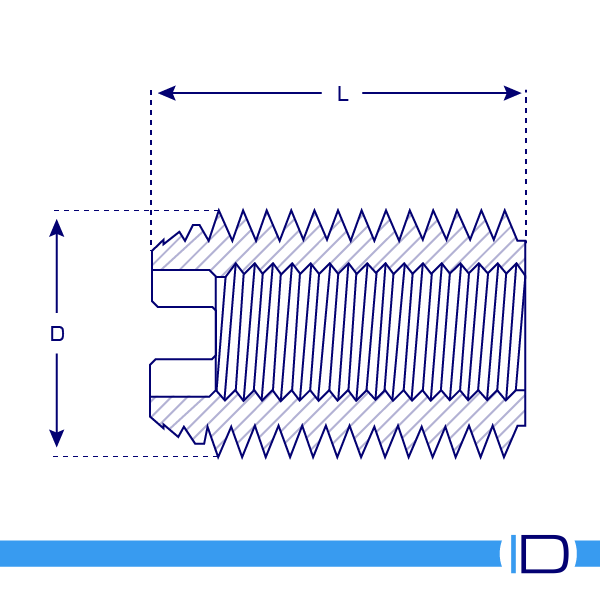

Kwik-Sert schematic drawing

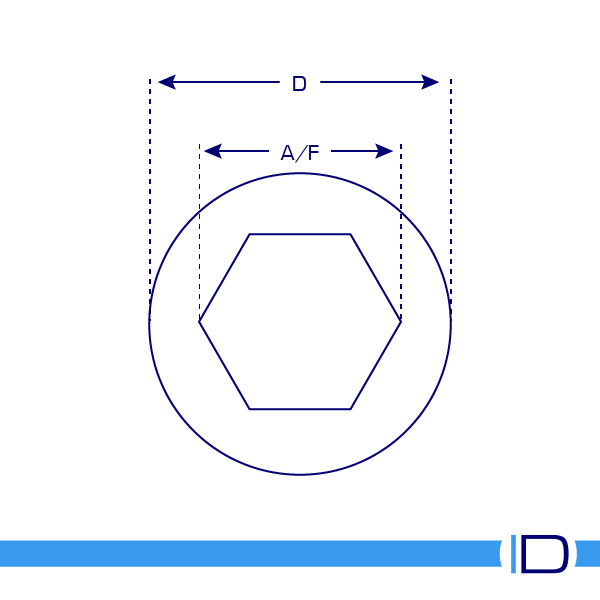

Hexagonal thread schematic

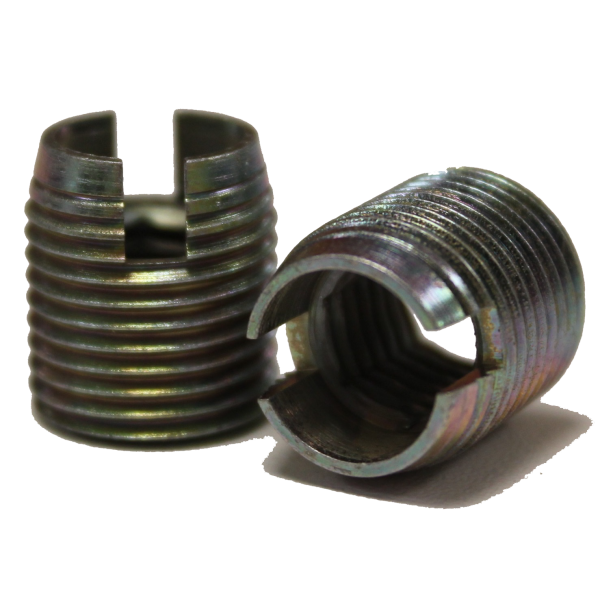

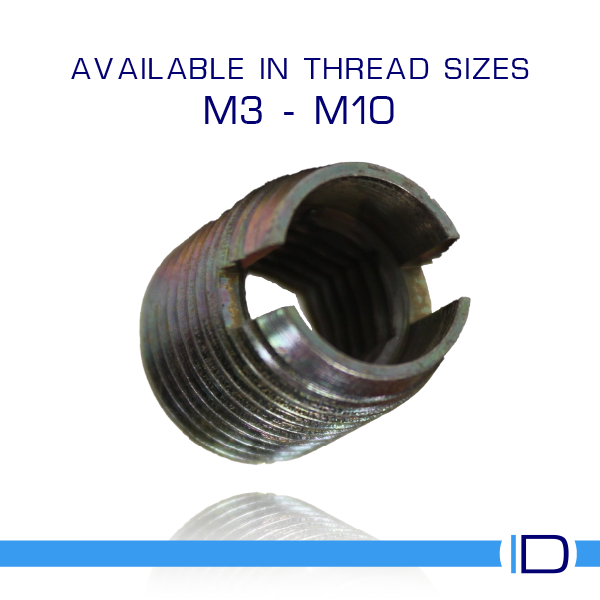

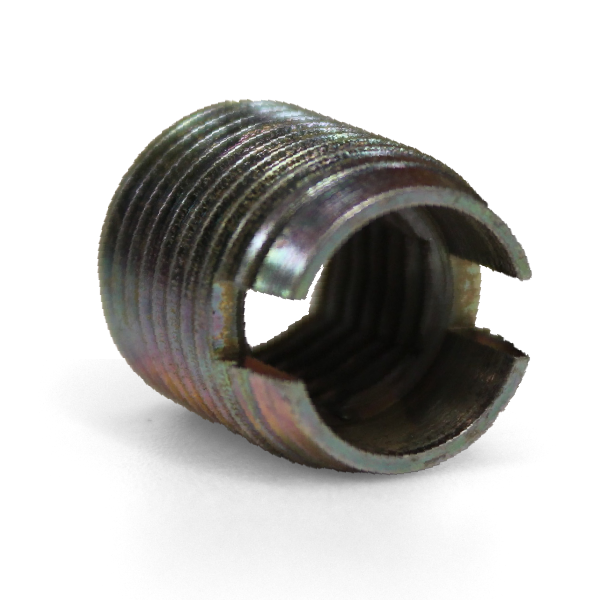

Kwik-Sert metal threaded insert

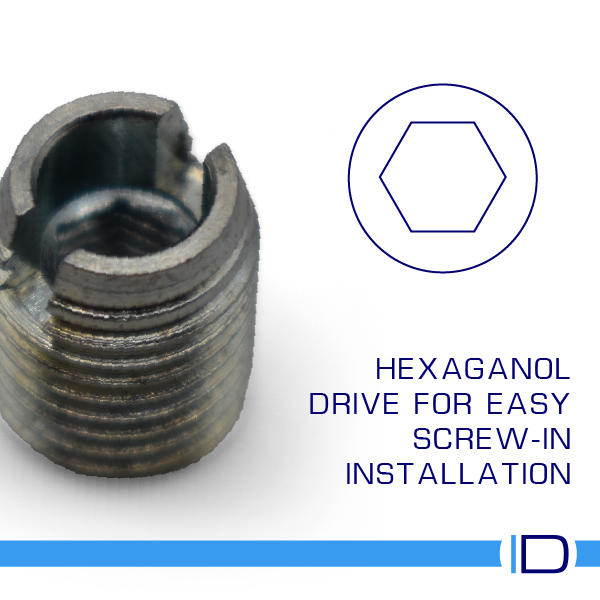

Threaded insert with hexagonal drive

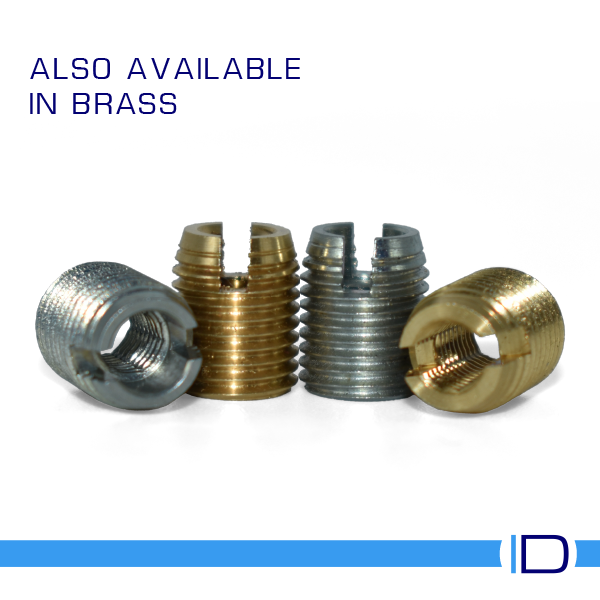

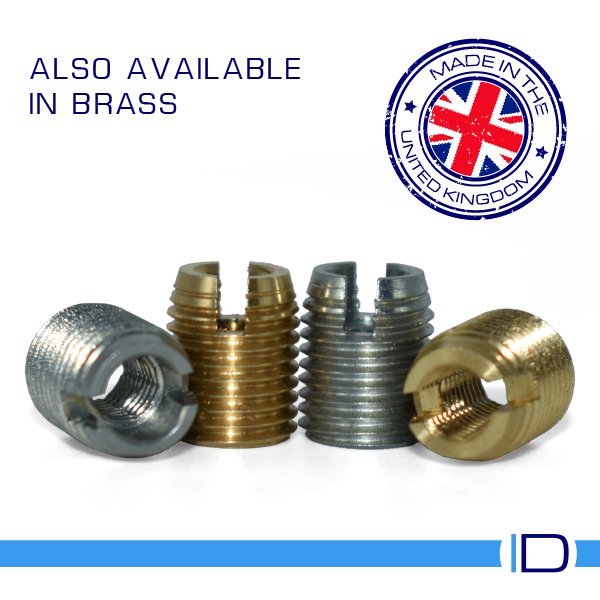

Brass and Steel metal threaded inserts
Self-tapping metal threaded insert
Kwik-Sert schematic drawing
Hexagonal thread schematic
Kwik-Sert metal threaded insert
Threaded insert with hexagonal drive
Brass and Steel metal threaded inserts

Kwik-Sert® - Steel - M3

Self-tapping threaded insert with hexagonal drive
From £9.62 per pack£11.54 inc. VAT
Choose Quantity
Select expand more
Kwik-Sert®, which is only available to purchase through InsertsDirect, is a versatile metal threaded insert. These self-tapping, screw-in inserts can be installed quickly and efficiently, due to its unique hexagon drive. There's no need for specialist tooling, a simple Allen key or hex key can be used to install it.

Available in hardened steel-plating, they are designed for use in multiple applications including light metal alloys, such as aluminium, castings, extrusions and fabrications.

The quality, self-cutting thread design requires less driving torque without the need for specialist equipment and results in a load bearing thread with a very high pull-out and torque performance.

Our Kwik-Sert® products are available in pack sizes of 10, 100 and 1,000 with a brass option, suitable for plastic applications – Kwik-Sert® Brass.

*Not included in our volume discount
Material:Steel
Thread Size:M3
Recommended Hole Size:4.60mm
Dimension (D):5.00mm
Dimension (L):6.35mm
Dimension (A/F):2.50mm
  • QTY 10 - 9923103
  • QTY 100 - 9923203
  • QTY 1,000 - 9923403

  • Also known by Part Number KS0305S
