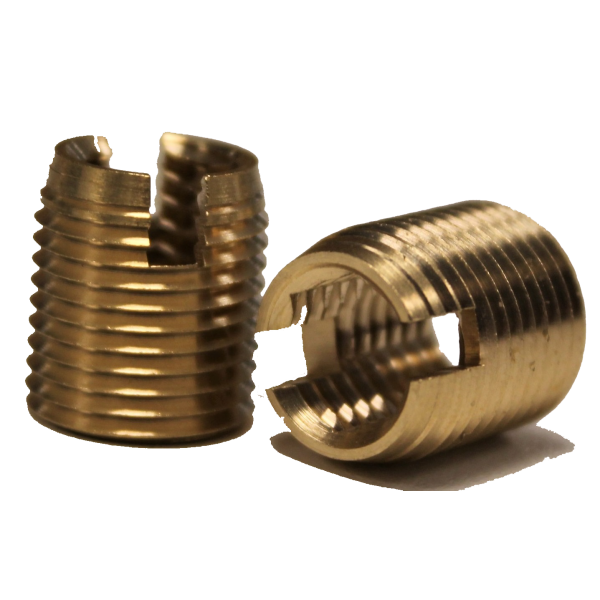

Self-tapping metal threaded insert

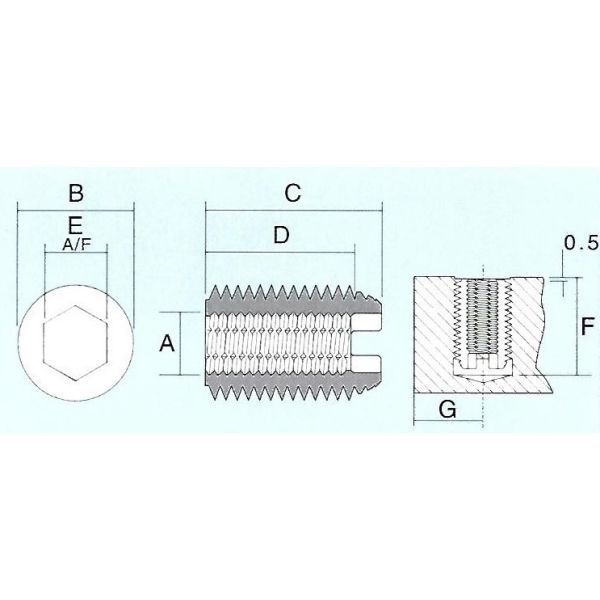

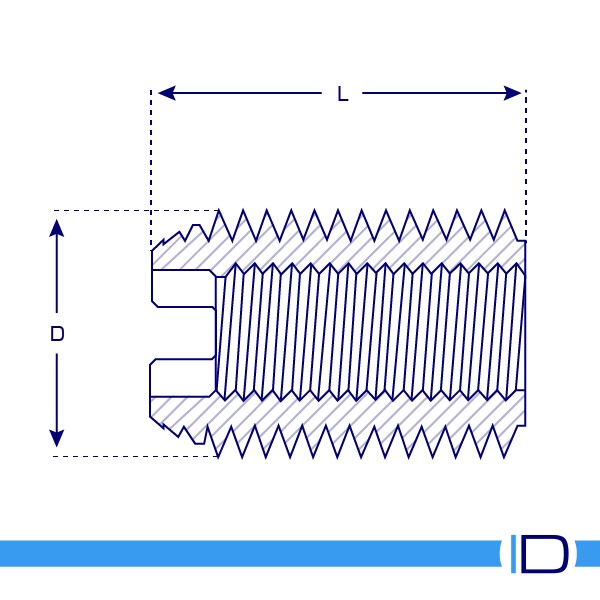

Kwik-Sert schematic drawing

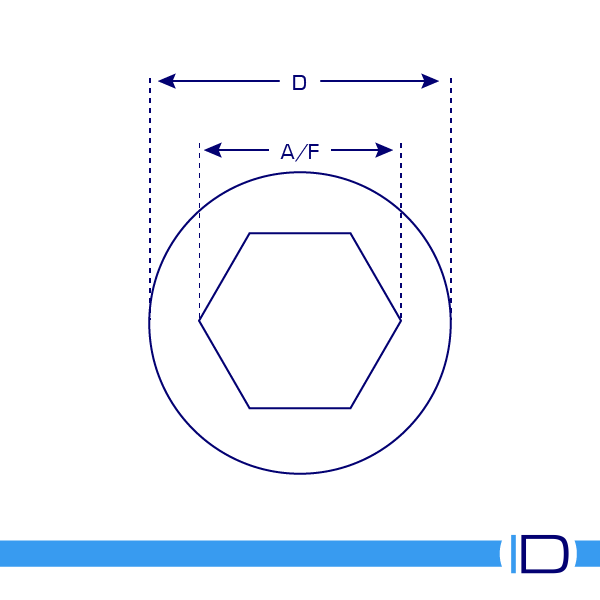

Hexagonal thread schematic

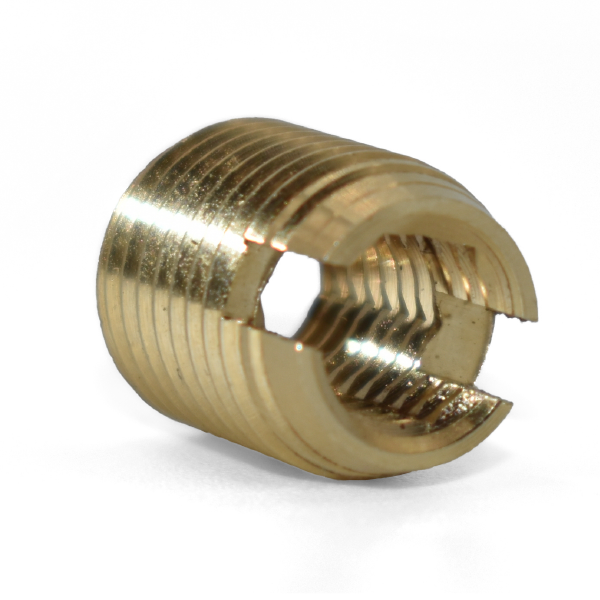

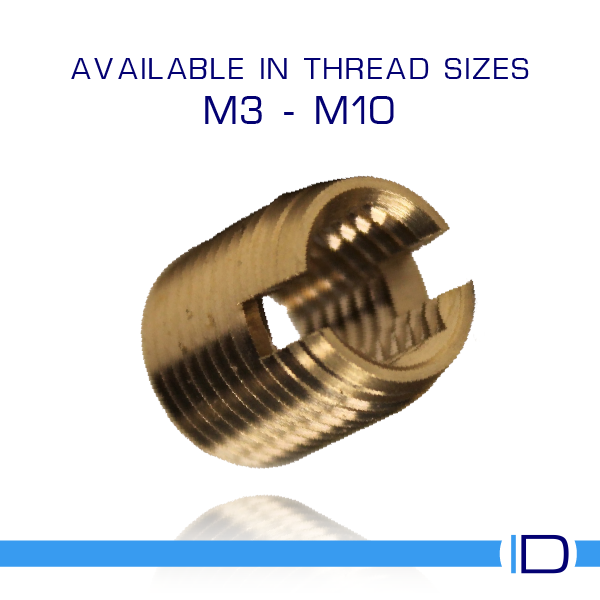

Kwik-Sert metal threaded insert

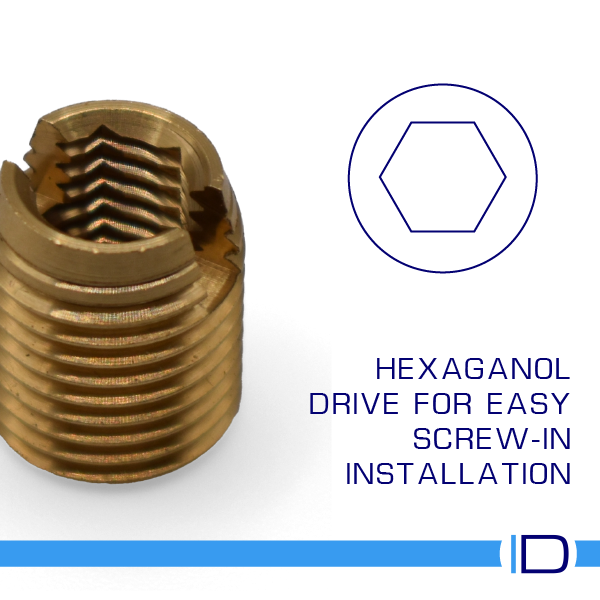

Threaded insert with hexagonal drive

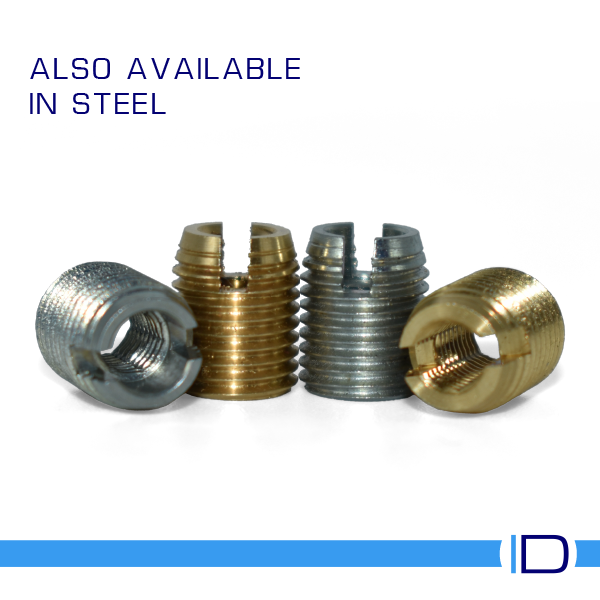

Brass and Steel metal threaded inserts
Self-tapping metal threaded insert
Kwik-Sert schematic drawing
Hexagonal thread schematic
Kwik-Sert metal threaded insert
Threaded insert with hexagonal drive
Brass and Steel metal threaded inserts

Kwik-Sert® - Brass - M8

Self-tapping threaded insert with hexagonal drive
From £10.70 per pack£12.84 inc. VAT
Choose Quantity
Select expand more
Kwik-Sert®, which is only available to purchase through InsertsDirect, is a versatile metal threaded insert. These self-tapping, screw-in inserts can be installed quickly and efficiently, due to its unique hexagon drive. There's no need for specialist tooling, a simple Allen key or hex key can be used to install it.

Available in brass, they are designed for use in the majority of thermoplastic and thermoset materials.

The quality, self-cutting thread design requires less driving torque without the need for specialist equipment and results in a load bearing thread with a very high pull-out and torque performance.

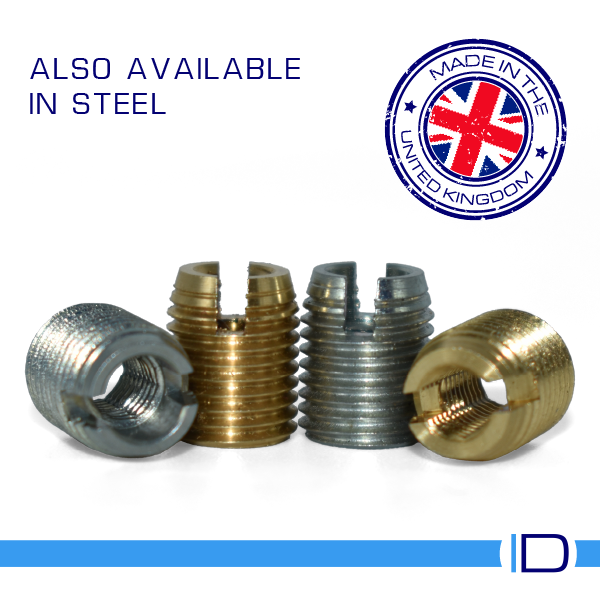

Our Kwik-Sert® products are available in pack sizes of 10, 100 and 1,000 with a steel-plated option, suitable for metal applications – Kwik-Sert® Steel.

*Not included in our volume discount
Material:Brass
Thread Size:M8
Recommended Hole Size:11.10mm
Dimension (D):12.00mm
Dimension (L):14.22mm
Dimension (A/F):(.250")
  • QTY 10 - 9923113
  • QTY 100 - 9923213
  • QTY 1,000 - 9923313

  • Also known by Part Number KS0812B
